IMM Hydrogen Samplers

IMM Hydrogen Samplers

DESCRIPTION

SYSCON Sensors Hydrogen Measuring probes are designed for the Steel industry to aid in the degassing process and to ensure that final hydrogen content remains within specified limits. Control of hydrogen level in finished steel products is essential to reduce and eliminate flaking, fissures, cracking, blowholes, pinholes, breakouts and other defects. SYSCON Hydrogen Measuring probes include non-splash coatings which are specific for use at Ladle or Tundish stations.

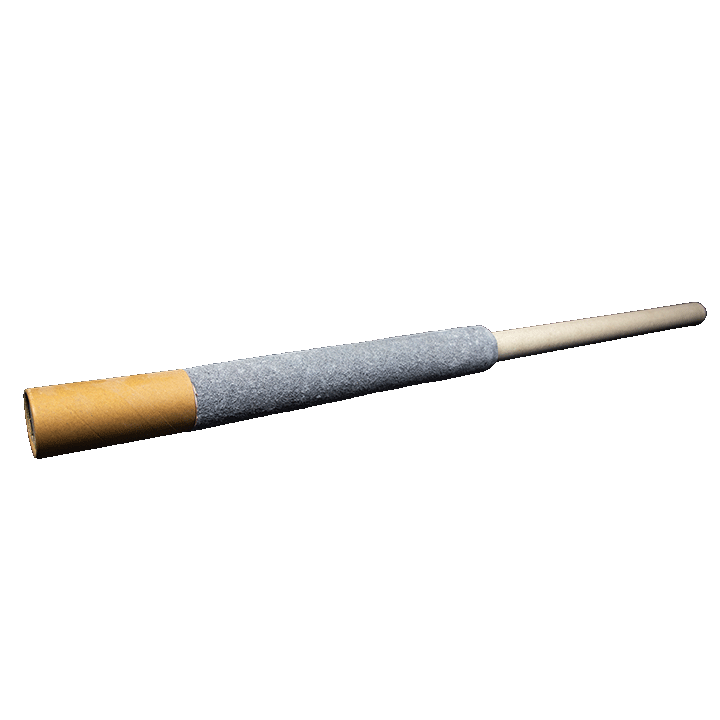

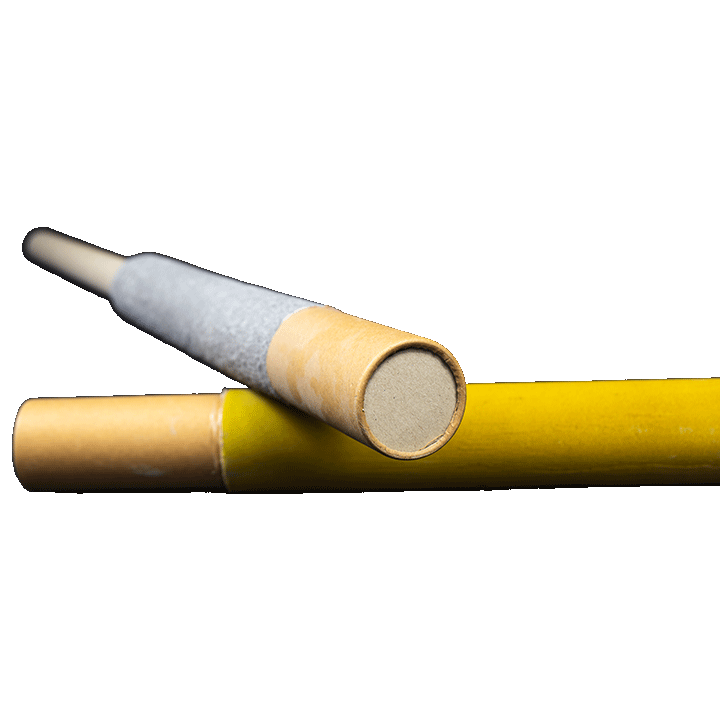

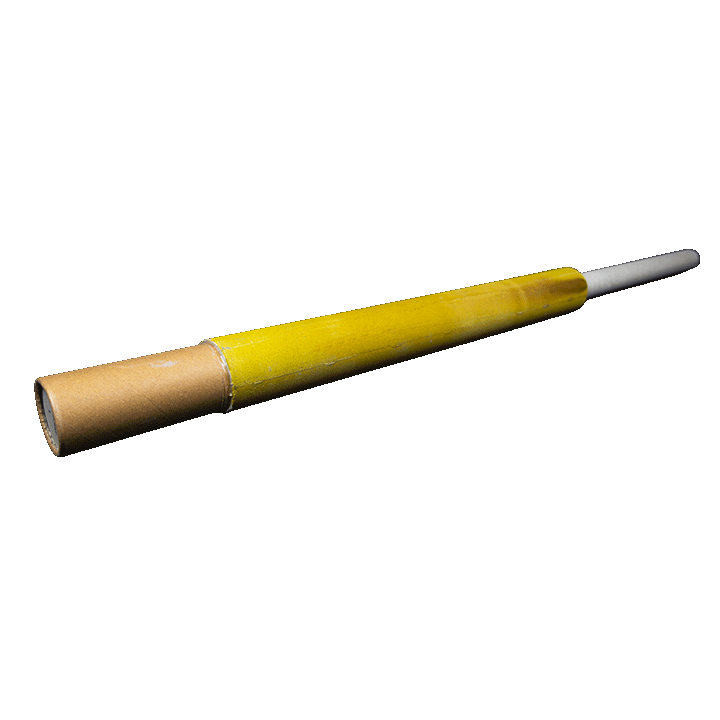

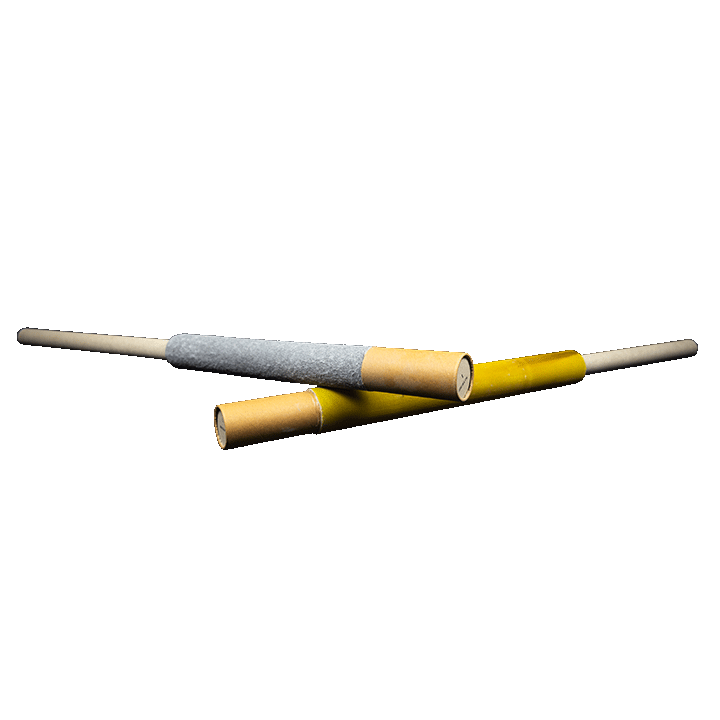

Immersion tubes are made from high density convolute wound paper for maximum strength and resilience. Probes with immersion tubes are available in a variety of lengths. Maintain stock in cool, dry, and well-ventilated location. Paper tube moisture content must remain below 12%. Appropriate PPE required; splashing of molten metal can occur.

FEATURES

  • Reliable determination of Hydrogen content in steel
  • Designed for use at LMF, VOD/VD, and Tundish
  • Compatible with industry standard lances, cables, and analysis equipment
  • Easily detects hydrogen, even at low levels, by means of thermal conductivity detection
  • Essential for quality control of dissolved hydrogen
  • Suited for automatic handling equipment
  • Economically priced
  • Manufactured under ISO 9001:2015 Quality Standards

SPECIFICATIONS

Sampling Methods

Nitrogen gas injection; Hydrogen diffusion and re-collection

Analysis Principle

Conductivity of dissolved Hydrogen
Accuracy: +-0.1 ppm
Range: 0.5 - 14 ppm

Slag Cap

Steel and cardboard

Non-Splash Sleeve

Silica sand (LMF, VOD/VD)
Sintectic heat resistant fiber (Tundish)

Sampling Time (Max)

120 seconds

Sampling Time (Max)

3,100 F

Tube Length

As required

Tube Diameter

ID: 1.15" (29.3mm), OD: 1.85" (47 mm)

ORDERING INFORMATION

Sampling method

Nitrogen gas injection; Hydrogen diffusion and re-collection

Analysis principle

Conductivity of dissolved Hydrogen

Accuracy: +-0.1 ppm

Range: 0.5 - 14 ppm

Slag Cap

Steel and cardboard

Non-splash sleeve

Silica sand (LMF, VOD/VD) Sintectic heat resistant fiber (Tundish)

Sampling Time (Max)

120 seconds

Sampling Temp (Max)

3,100 F

Tube Length

As required

Tube Diameter

ID: 1.15” (29.3mm), OD: 1.85” (47mm)

DOCUMENTATION

PDF iconHydrogen Samplers Data Sheet

    To order, call SYSCON Sensors at 574-232-3900 or request a quote below
