Metacup Thermal Analysis Cups

DESCRIPTION

Quantity: 100 Metacups Per Box

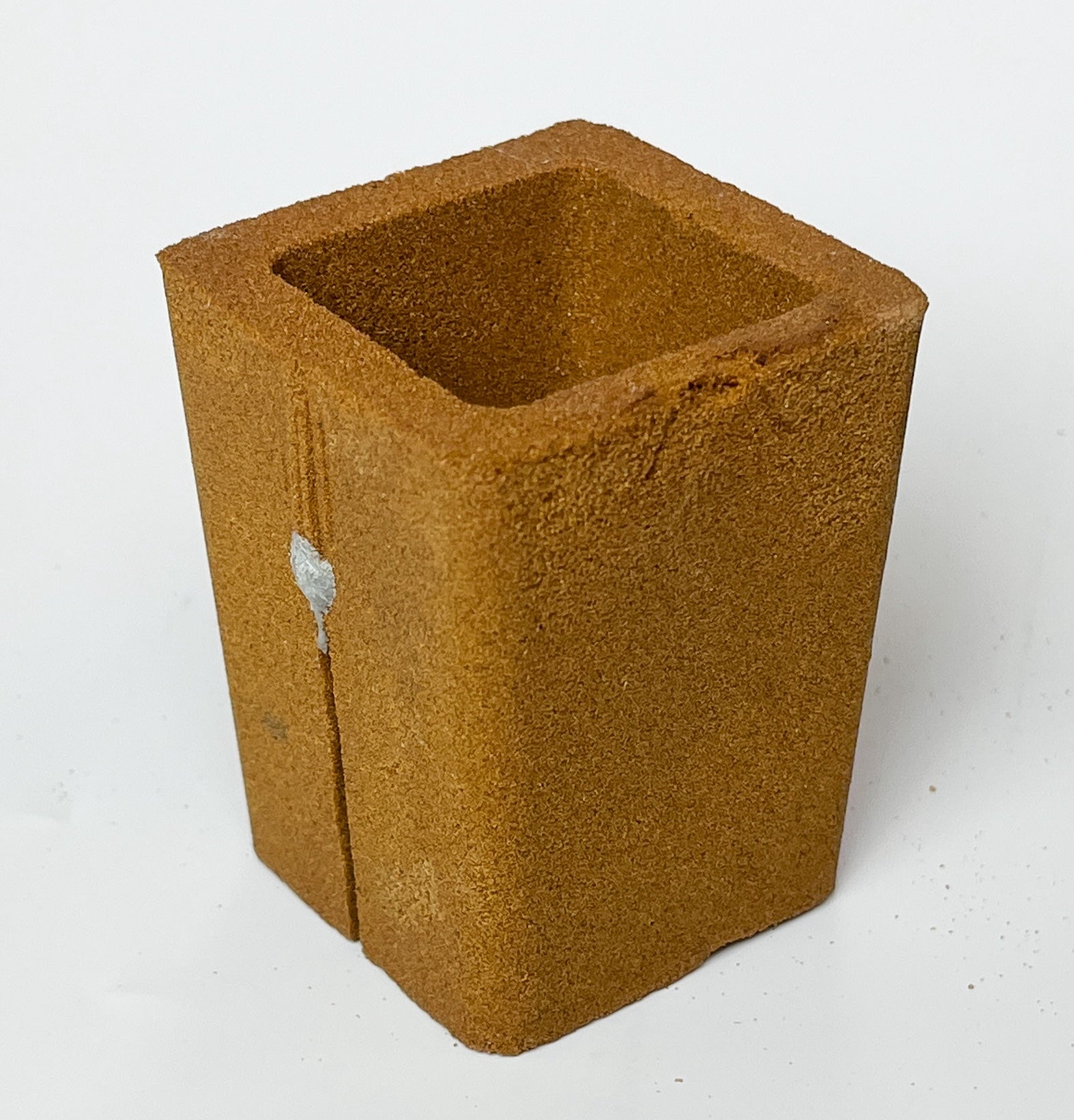

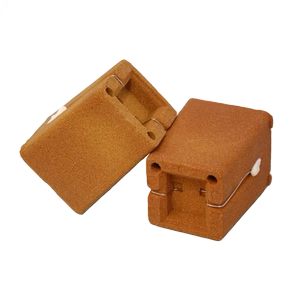

Expendable sampling cups used to determine the thermal arrests in the cooling curve of molten Iron. The shell is manufactured using high grade Silica sand and fitted with a strong, dependable connecting system. The volume of the cups offers the best compromise between measuring time and consistency of the results.

FEATURES

  • Quick and accurate melt quality determination
  • Compatible with all thermal analysis systems
  • Consistent results with historical data due to square shape
  • Square shape prevents loose contacts
  • Thermocouple protected by Quartz tube
  • Manufactured under strict ISO 9001:2000 Quality Standards
  • Quick Shipping from USA

CUP TYPES

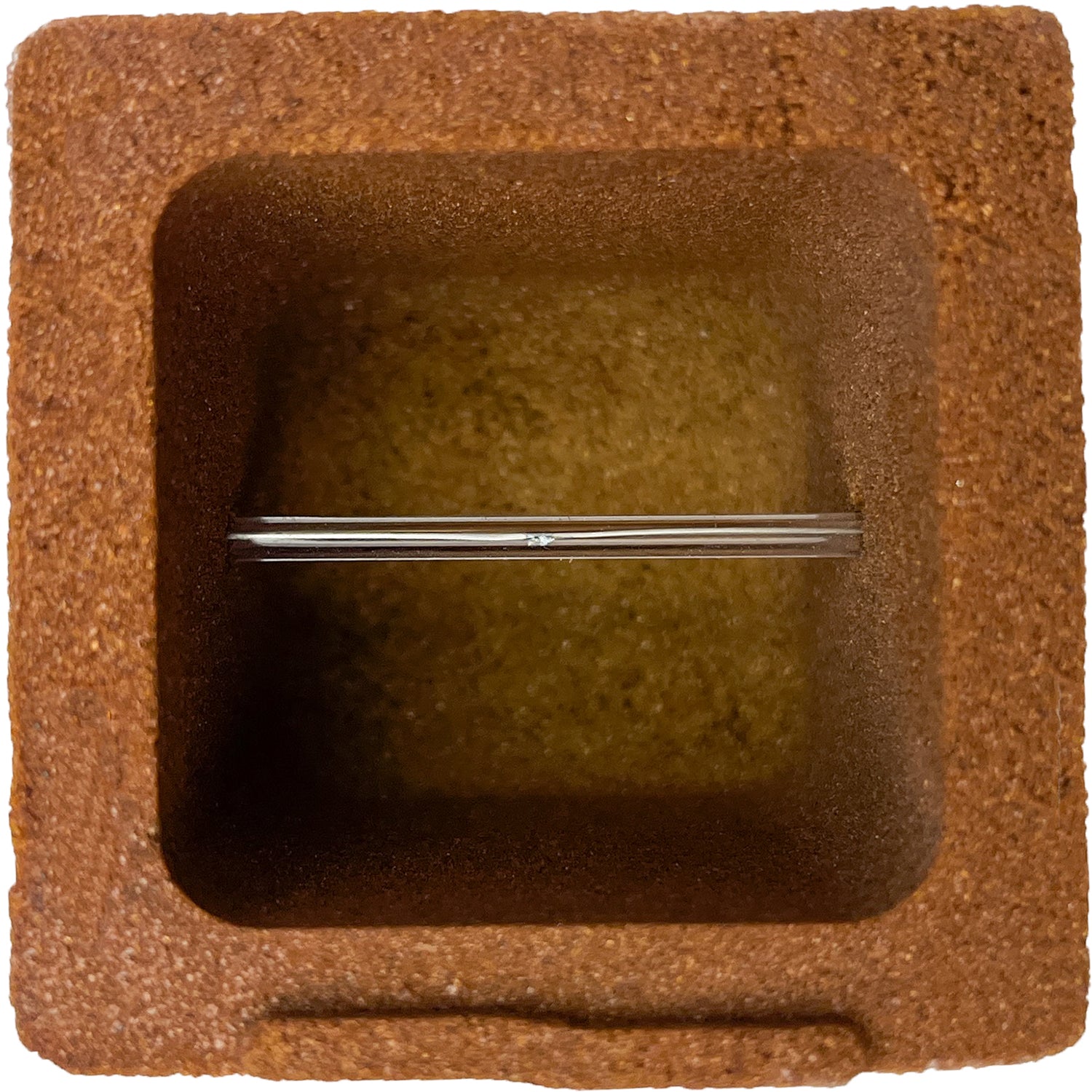

Metacup

Without Tellurium, resulting in grey solidification. Used to determine eutectic undercooling and CE.

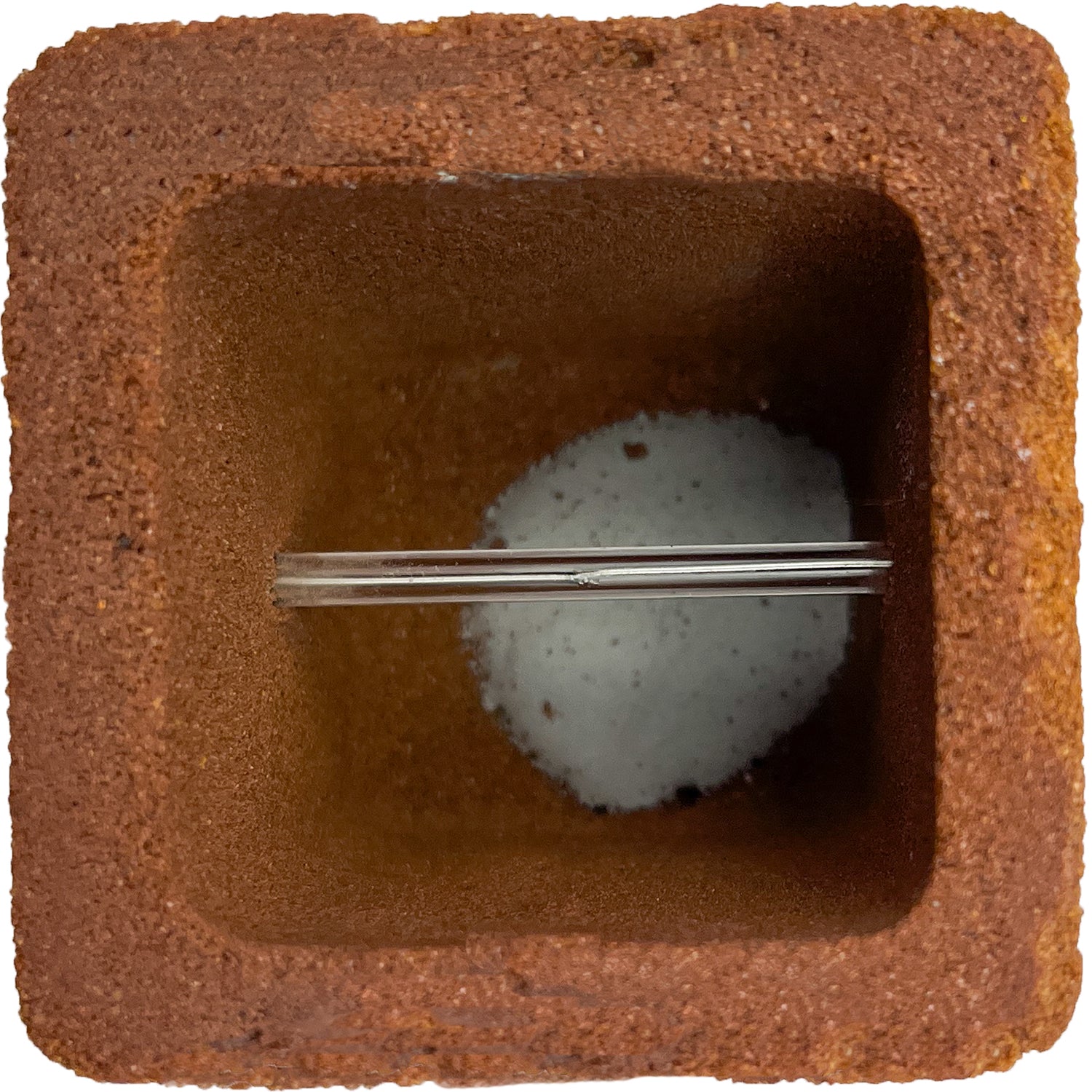

Metacup - Te

Tellurium on the bottom suppresses undercooling and promotes white solidification. Commonly used to calculate CE, C, and SI content.

Metacup - TeS

Includes Tellurium + Sulphur for magnesium treated nodular and vermicular  iron

SPECIFICATIONS

Thermocouple Type

K

Thermocouple Calibration Standard

IPTS 68

Thermocouple Accuracy

±0.75%

Recommended Measurement Temperature Range

932°F - 2462°F
500°C - 1350°C

Resin Content

2.5%

Mold Sand Grade

AFS 60 - 70

Core Hardness

4.2 MPa

Shelf Life (at least)

12 months minimum

Height

2.05” (52mm)

Width

2.00” (51mm)

Weight

4-4.4 oz. (115 - 125g)

Handling & Storage

Handle with care and store in a dry environment

ORDERING INFORMATION

METACUP

Thermal Analysis Square Cup w/o Tellurium

METACUP-Te

Thermal Analysis Square Cup w Tellurium

METACUP-R-Te

Thermal Analysis Round Cup w/ Tellurium

METACUP-R-TeS

Thermal Analysis Round Cup w/ Tellurium + Sulphur

DOCUMENTATION

PDF iconMetacup Thermal Analysis Cups Data Sheet
    Order sample packs
