DESCRIPTION

Quantity: 50 Per Box

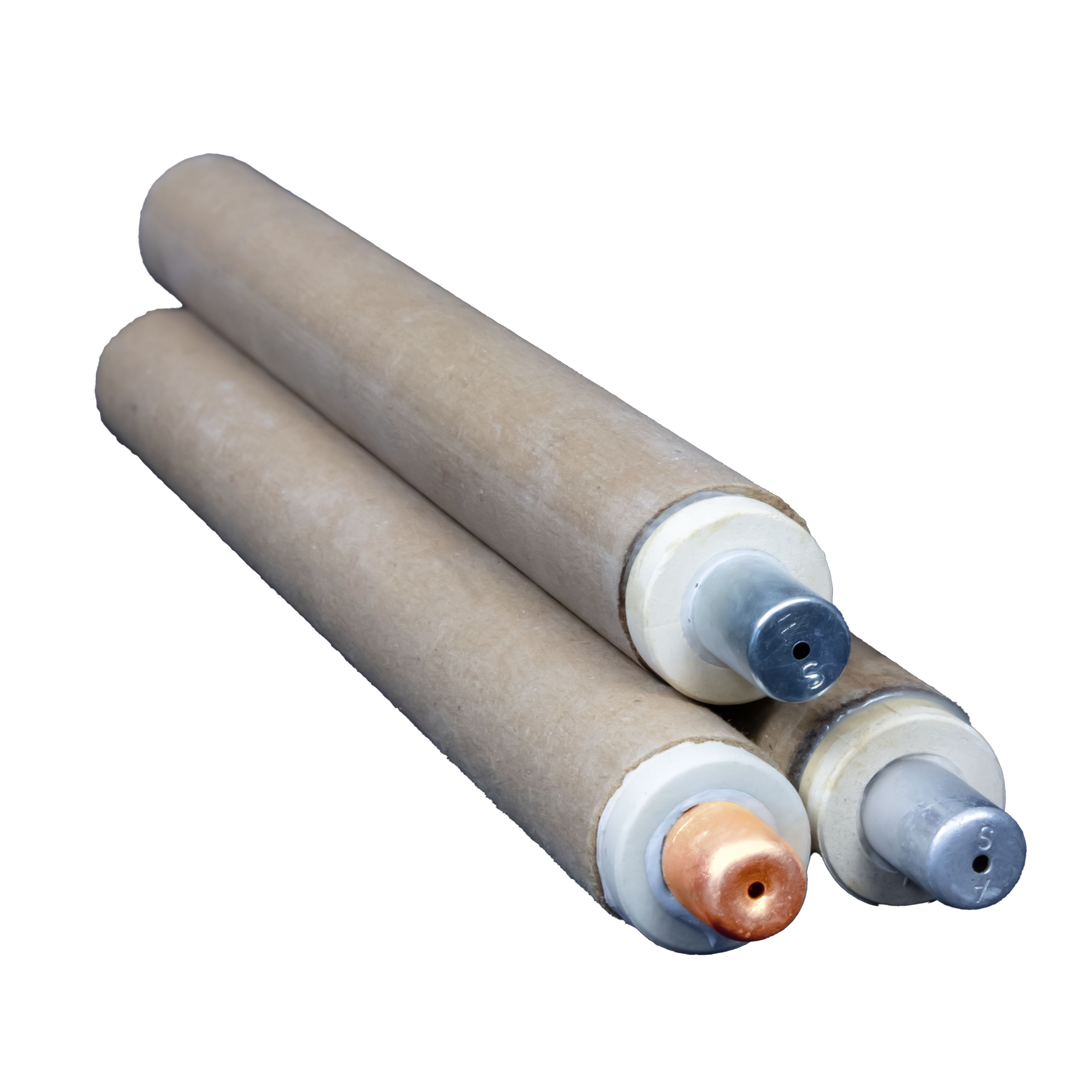

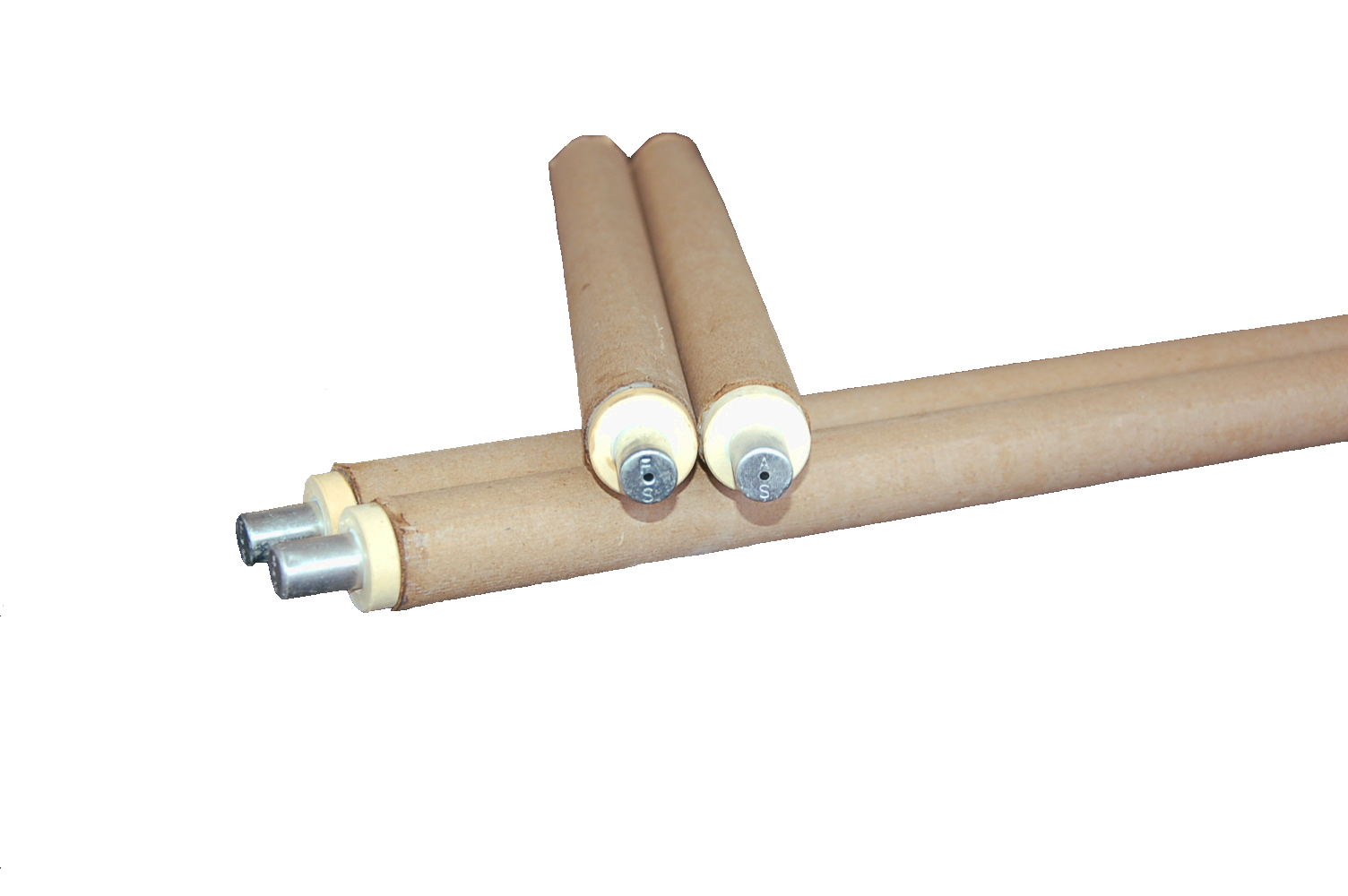

SYSCON Sensors SUL is an expendable, single-use, and high precision thermocouple tip. SULs are suited for a wide range of molten metals - Iron, Steel, Copper, Bronze, and Aluminum. The SUL tip does not need any special accessories and fits snugly on SYSCON Sensors TS-1 Handheld Digital Pyrometer or WM-1 Wall-Mount Pyrometer Lance.

SYSCON Sensors SUL thermocouple tips are constructed from convolute-wound paper tubes with a ceramic body thermocouple insert and moisture-resistant cement for accurate and quick temperature measurement. Convolute tubes have a slower burn rate and greater beam strength than spiral paper tubes. The small-diameter tube is designed for easy penetration in furnaces or ladles.


FEATURES

  • Economically priced
  • Ideal for larger furnaces and ladles
  • Compatible with most instrument systems
  • Manufactured under ISO 9001:2015 Quality Standards
  • Quick Shipping from USA

SPECIFICATIONS

Thermocouple Type

Type S

Thermocouple Accuracy

±0.25%

Calibration Standard

IPTS 68

Protective Cap

Aluminum or Steel

Recommended Measurement Temperature Range

932°F - 3182°F
500°C - 1750°C

Dimensions

ID: 0.71” (18mm)
OD: 1.375” (35mm)

ORDERING INFORMATION

With Aluminum Protective Cap
SUL-10-12AL

SUL, Type S, 12” total tube length, Alum Cap

SUL-10-24AL

SUL, Type S, 24” total tube length, Alum Cap

SUL-10-36AL

SUL, Type S, 36” total tube length, Alum Cap

SUL-10-48AL

SUL, Type S, 48” total tube length, Alum Cap

SUL-10-60AL

SUL, Type S, 60” total tube length, Alum Cap

SUL-10-72AL

SUL, Type S, 72” total tube length, Alum Cap

With Steel Protective Cap

SUL-10-12ST

SUL, Type S, 12” total tube length, Steel Cap

SUL-10-24ST

SUL, Type S, 24” total tube length, Steel Cap

SUL-10-36ST

SUL, Type S, 36” total tube length, Steel Cap

SUL-10-48ST

SUL, Type S, 48” total tube length, Steel Cap

SUL-10-60ST

SUL, Type S, 60” total tube length, Steel Cap

SUL-10-72ST

SUL, Type S, 72” total tube length, Steel Cap

DOCUMENTATION

PDF iconSUL Single-Use Thermocouples Data Sheet
