DESCRIPTION

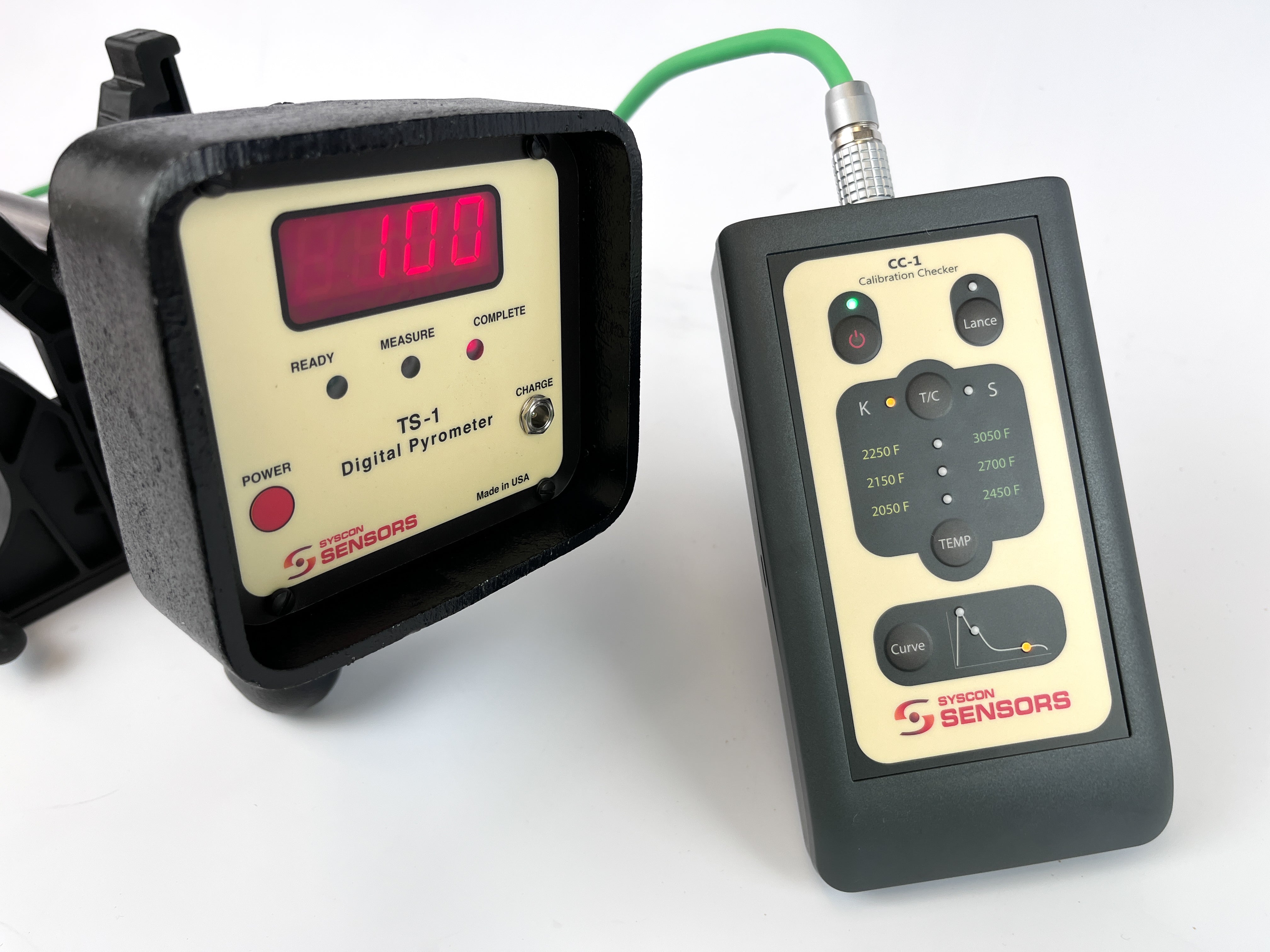

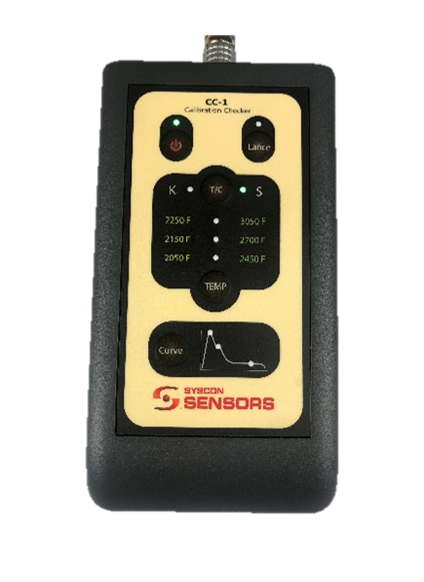

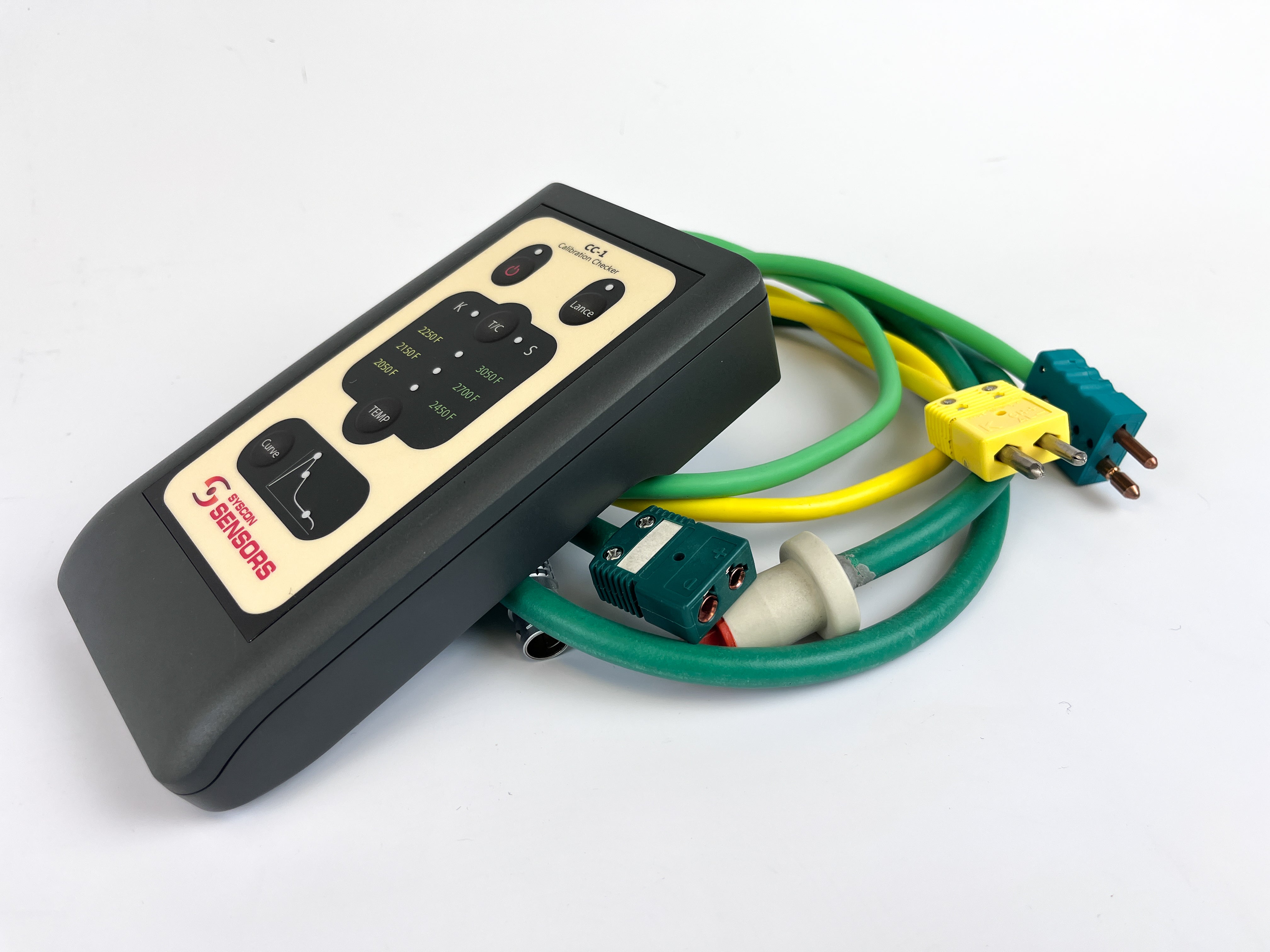

SYSCON Sensors CC-1 provides quick and accurate calibration checking for Pyrometers and Lab analyzers. The device generates cold-end compensated voltages corresponding to three standard temperatures and includes lance resistance check functionality. A standard curve can be generated to plot on an FL-1, Quick-Lab Datacast, or similar cooling curve lab analyzer.

FEATURES

  • Easy to operate Lance Check, Temp Check, and Curve Simulation features
  • Available with standard K and S type test leads and plugs
  • Toggle between K and S type output
  • High precision DAC and cold-end temperature sensor generate precise microvolt output
  • High overall instrument accuracy of ± 1.8°F (± 1°C)
  • Color coded LEDs to indicate output status
  • +/- 50 hours of runtime on full charge
  • Automatic power shut-off after 5 minutes
  • Smart charging circuit with overload and temperature protection
  • IP 65 and UL 94 V-0 rated case – no mechanical switches

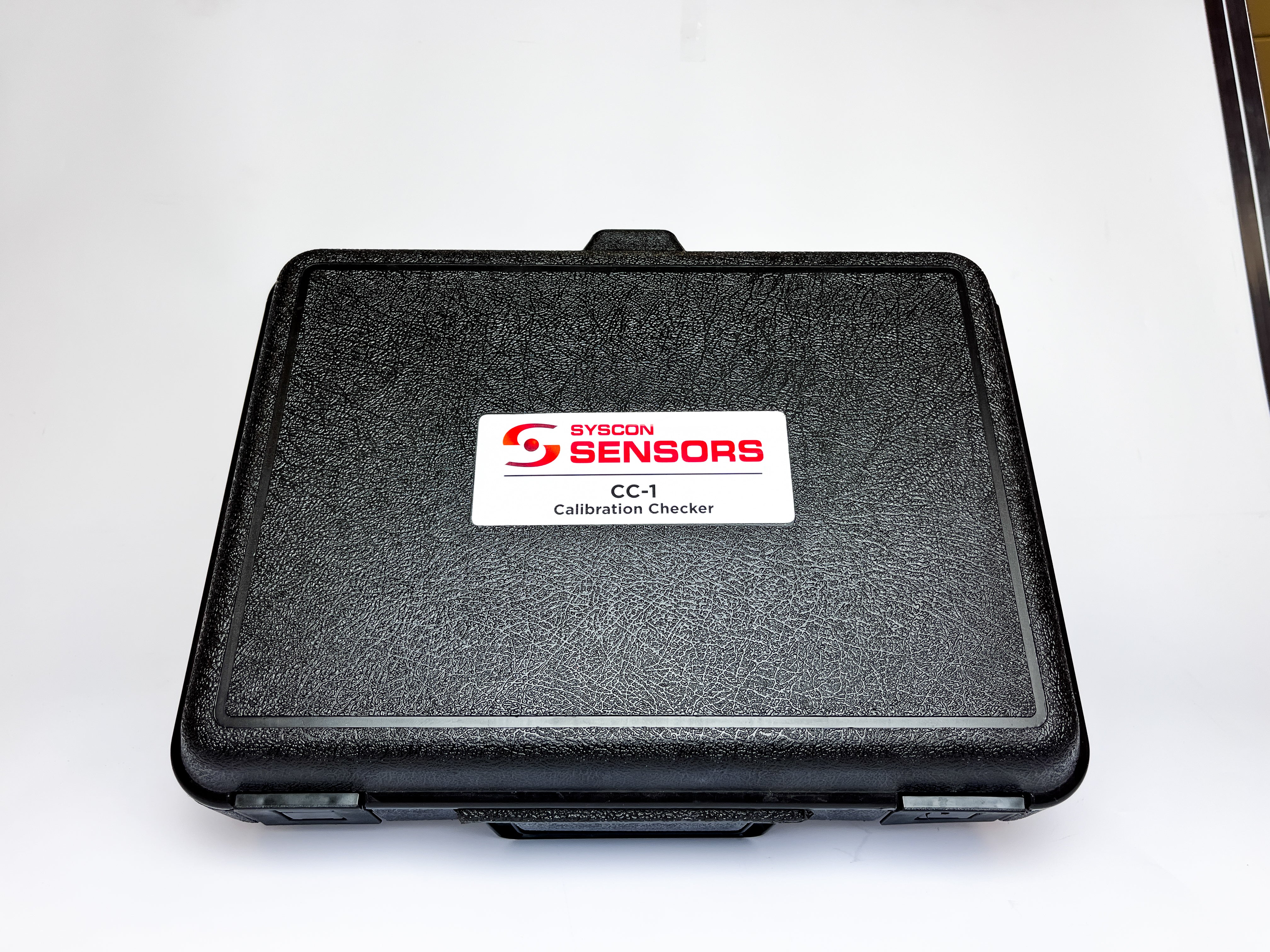

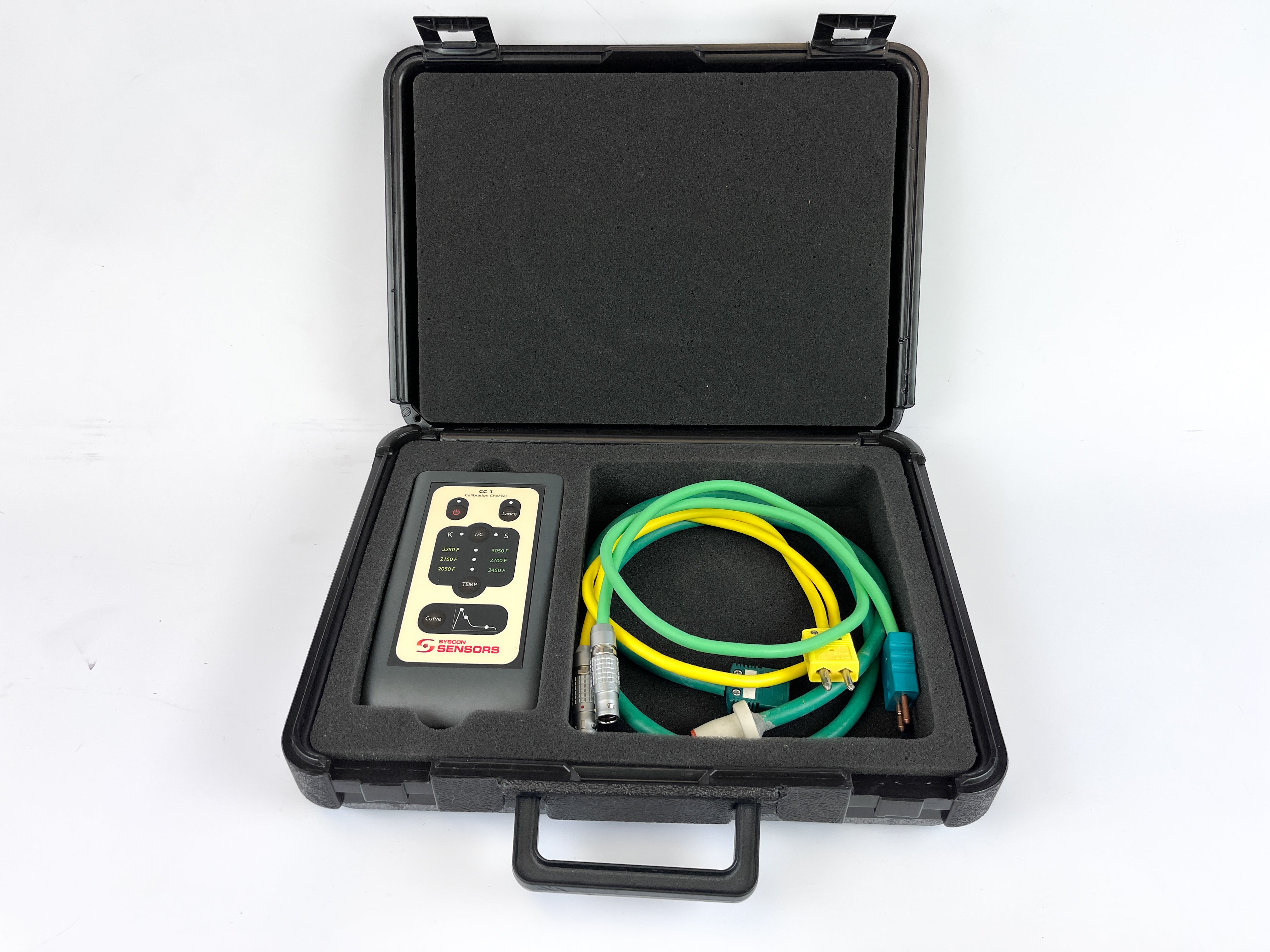

  • Protective storage case included

TECHNICAL SPECIFICATIONS

Output

Dual Thermocouple Output

Thermocouple Type

S, K

Calibration Standard

IPTS 48, 68, 90

Operating Mode

Lance check, Temp Check, Curve Simulation

Instrument Accuracy

±1.8 °F (±1°C)

Operating Temperature

32˚F - 140˚F (0°C - 60˚C)

Ambient Humidity

0 – 90% Non-Condensing

Battery

Li-Polymer 3.7 V 2500 mAh

Battery Charger

100 - 240 V 60 Hz AC Input
5V 1 A DC Output

Charging Time

150 minutes
(0 – 100% charge)

Housing

IP 65 AND UL 94 V-0 rated box

Storage Temperature

0˚F - 185˚F (-17°C - 85˚C)



ORDERING INFORMATION

CC-1

CC-1 with battery, charger, protective case

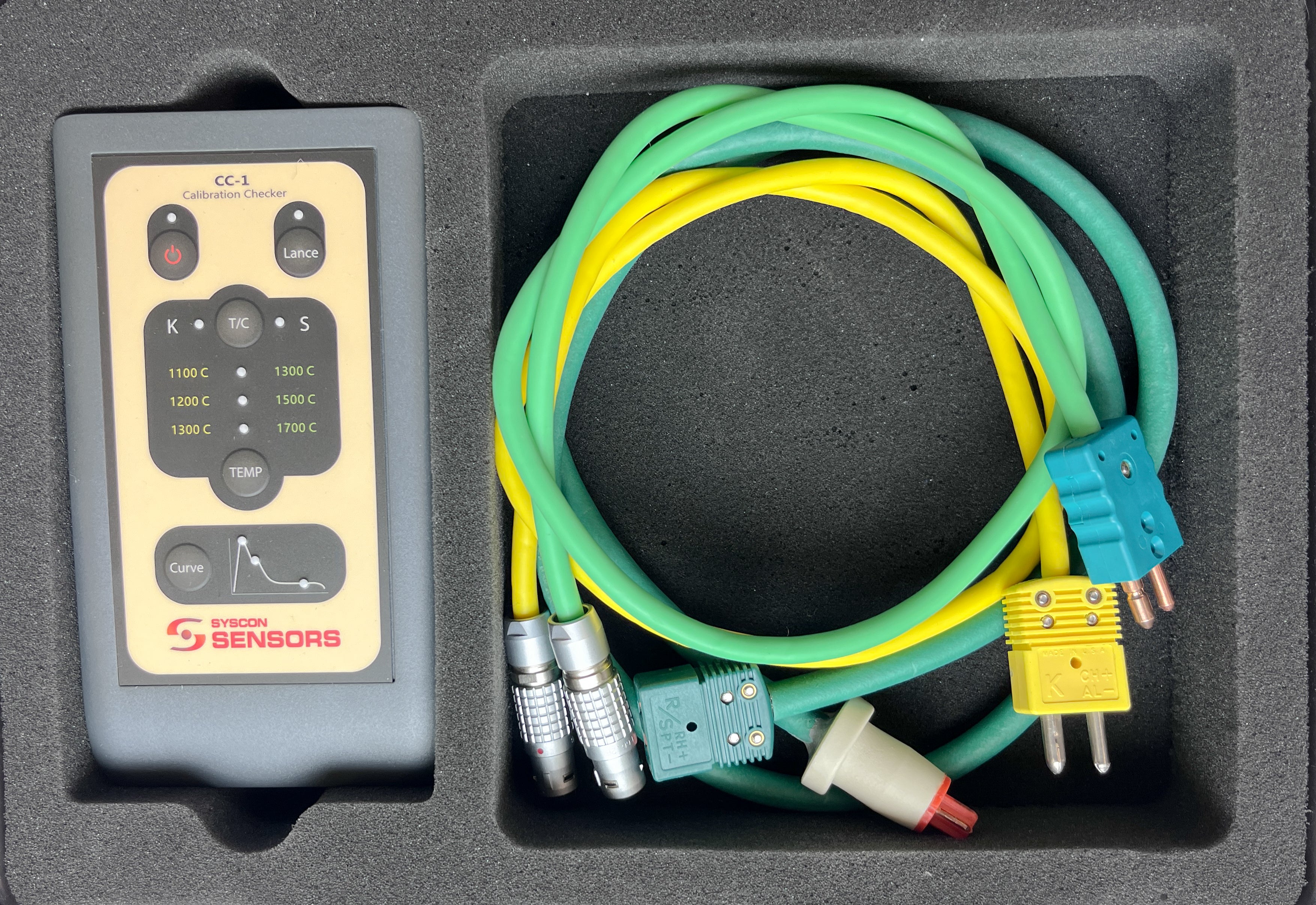

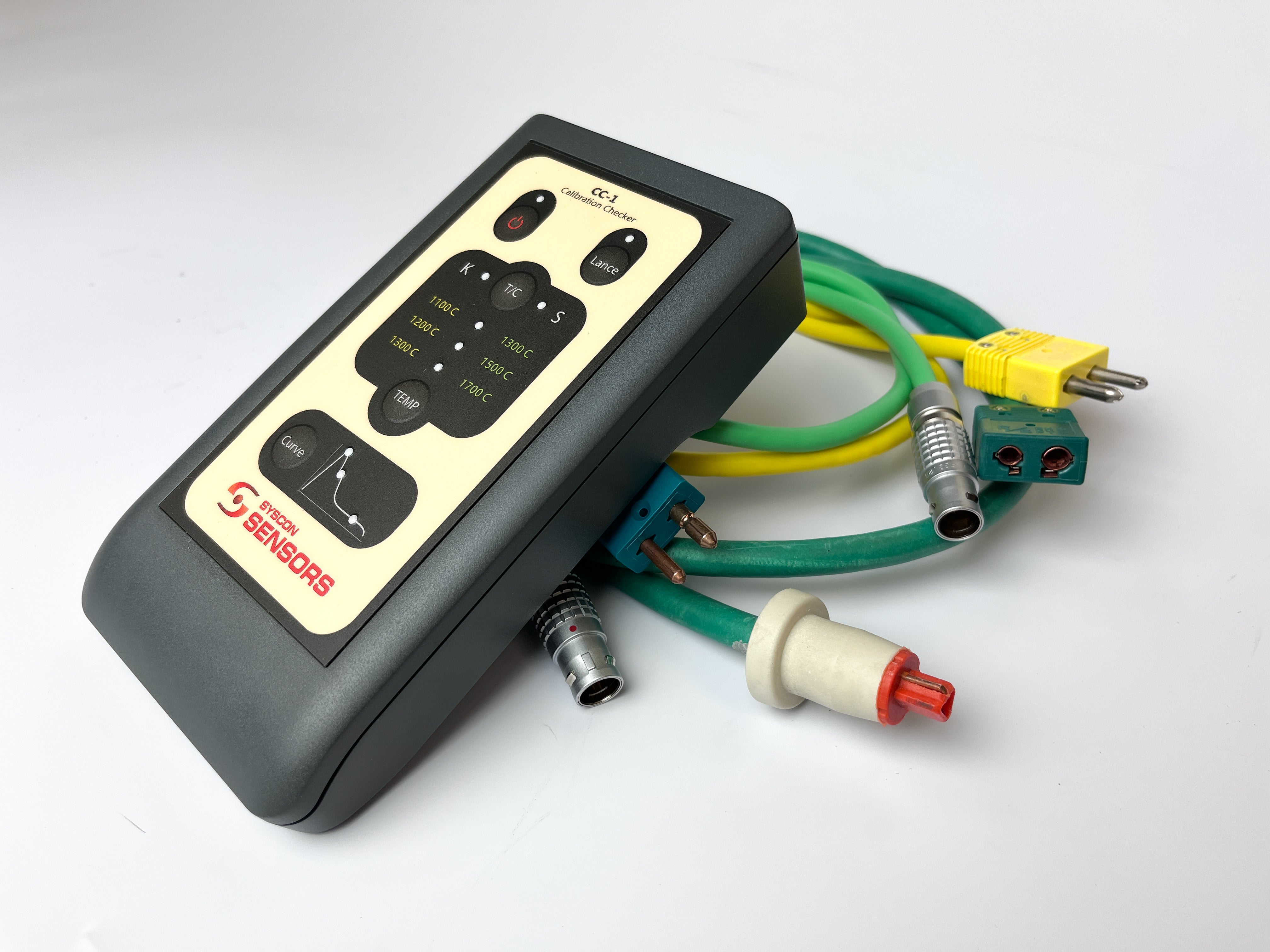

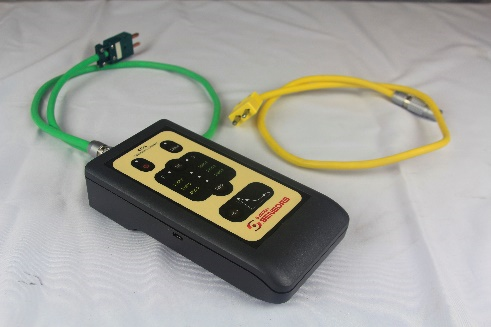

Available Test Leads

CC-TL-S-CB

CC-TL-S-TC

CC-TL-K-TC

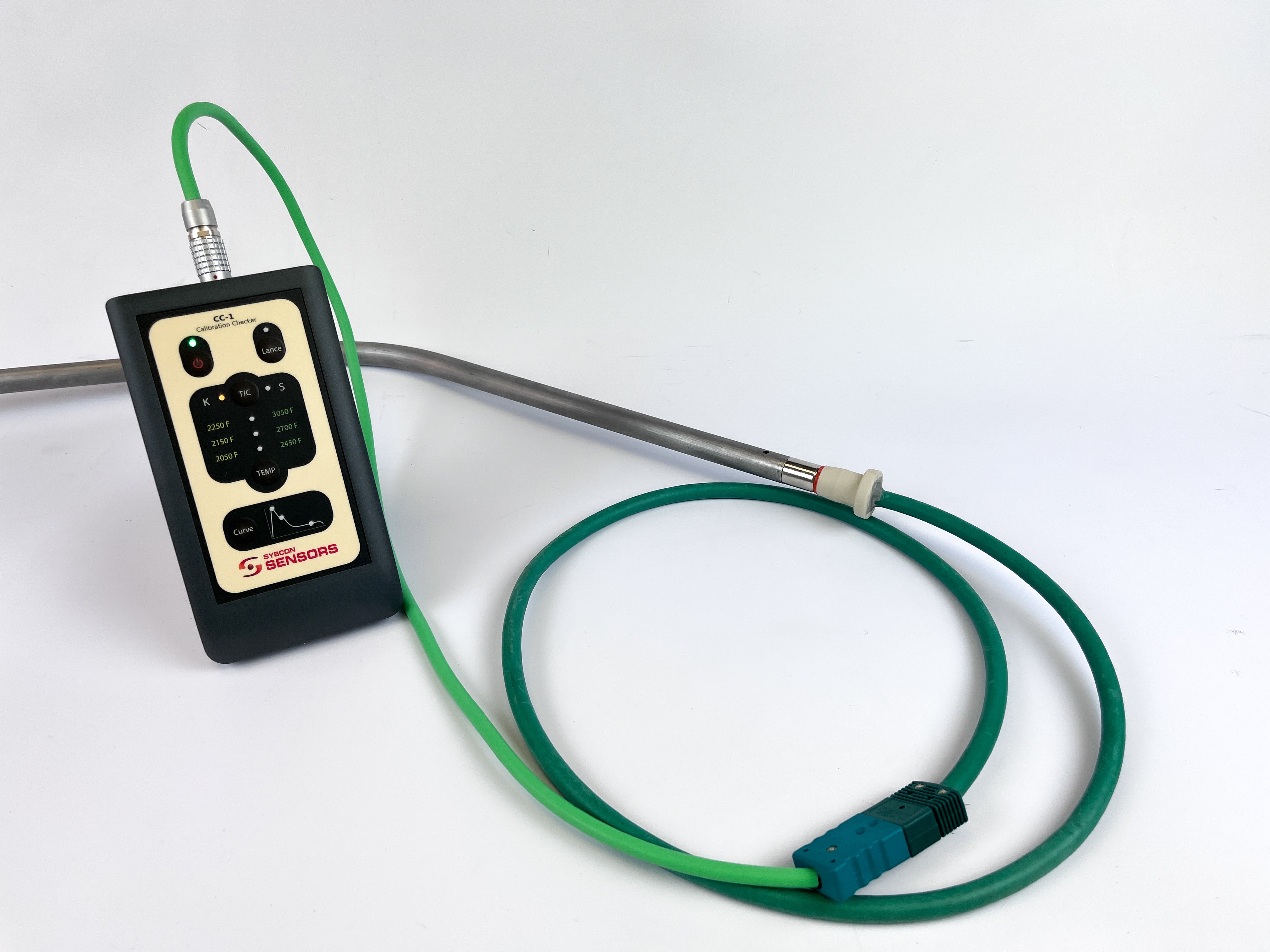

S type test lead with plug for lance contact block

S type test lead with two-pin plug for instruments

K type test lead with two-pin plug for instruments
